2D CAD 1

CAD/CAM Nesting solution for 2D or bevel profile cutting, routing, or punching premium quality parts using less material

2D CAD 2

CAD/CAM Nesting solution for cutting tube, pipe, and structural steel within 3D SOLIDWORKS environment.

2D CAD 3

Intuitive 3D Press Brake solution for offline verification and accelerated production.

2D CAD 4

Optimized Cut-to-Length Nesting for miter and bundle cutting of bar, tube, pipe, and beam stock

2D CAD 5

Integrated Unfolding Interface that recognizes bend features and flattens with K-factor accuracy

2D CAD 6

DSTV Exporter Plugin to seamlessly generate NC1 files within SOLIDWORKS

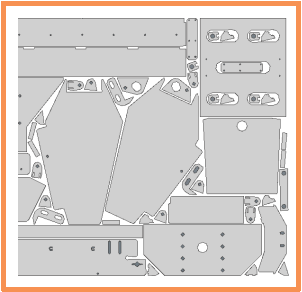

Auto Nesting Diagram

AUTO NESTING

MaxxCAM’s irregular nesting engine allows nesting on multiple sheets and sizes simultaneously, resulting in stunning results.

Irregular nesting features included:

  • Rotation and grain control
  • Nest for next process
  • Due date nesting
  • Priority of parts
  • Mirror of parts
  • Revision of parts
  • Nesting of parts and assemblies
  • Comprehensive reports
  • Colour code for easy part identification
  • Use of multi-core processors for fast results
Download Brochure
